In the world of custom metal nameplates – whether it’s a delicate equipment ID tag, a robust machinery plate, or a metal logo showcasing brand value – the unsung hero behind their exceptional quality and intricate detail is often a crucial yet easily overlooked element: the mold. Molds are truly the “soul” and “foundation” of custom metal nameplate manufacturing. Today, we explore the secrets of molds and how they bring every high-quality metal identifier in your hands to life.
一、Why is the Mold the Core of Custom Metal Nameplates?
The mold is the essential tool for mass production. Its quality directly dictates the final product’s:
1.Fine Detail & Reproduction: Complex patterns, tiny text, subtle textures (like brushed or sandblasted finishes) require high-precision molds for accurate replication.
2.Production Efficiency & Consistency: High-quality molds ensure fast, stable production, guaranteeing high uniformity in dimensions and appearance across large batches.
3.Surface Texture & Durability: The mold’s machining quality impacts the nameplate’s surface flatness and smoothness, subsequently influencing its corrosion resistance, wear resistance, and overall aesthetics.
4.Cost Effectiveness: While the initial mold investment is higher, amortized over large production runs, a high-quality mold significantly reduces per-unit costs and minimizes scrap rates. It also ensures faster lead times for repeat orders.
二.、Common Mold Types for Custom Metal Nameplates
1.Etching Dies (Photochemical Etching Molds):
①Principle: Utilizes photochemical processes and chemical etching to precisely create patterns, text, or textures on metal sheets.
②Characteristics: Excels at producing extremely fine details: intricate patterns, small fonts, complex logos, QR codes, serial numbers, and special surface textures (e.g., antique, matte). Precision can reach ±0.1mm or higher.

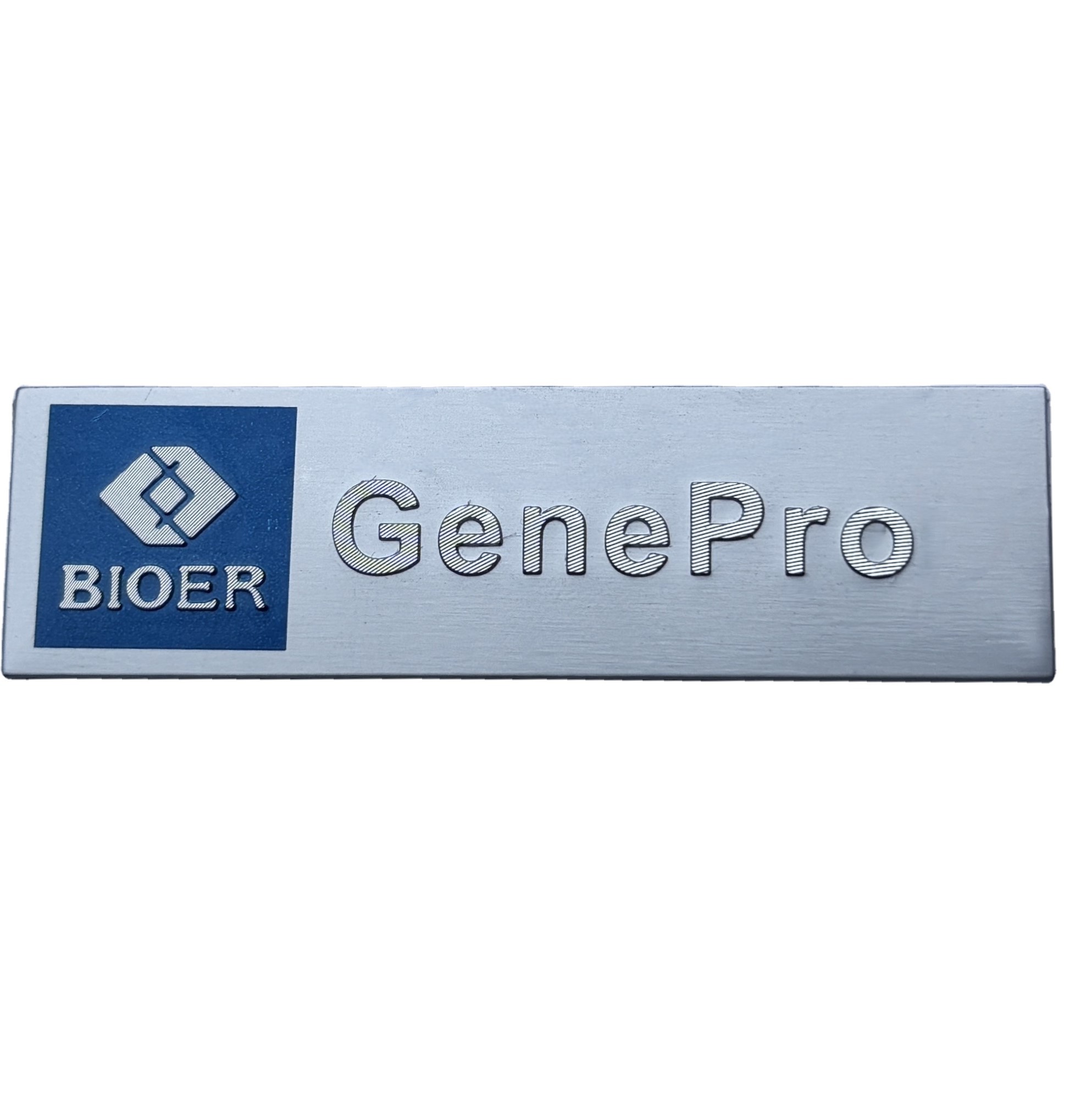

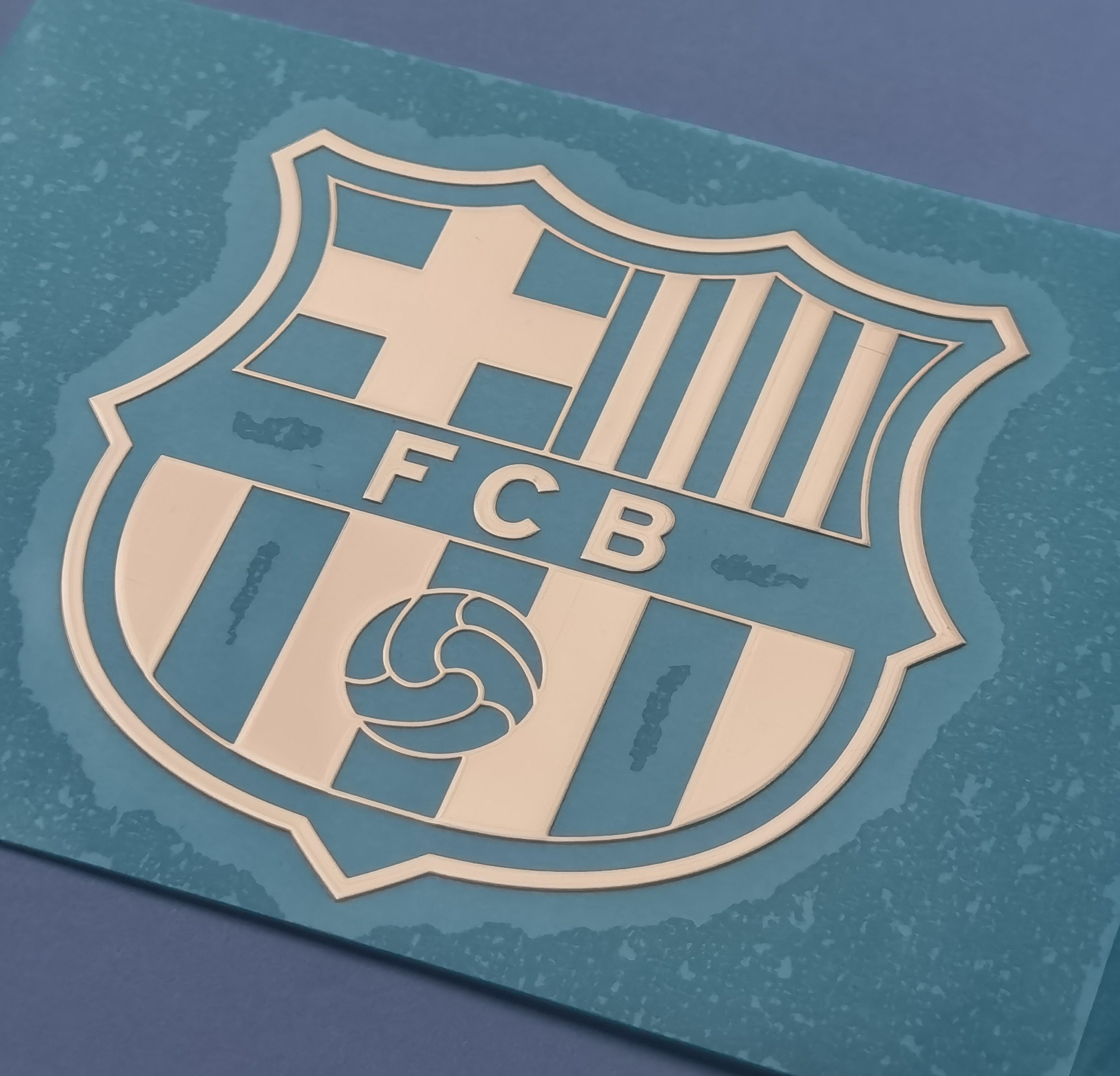

③Applied Process: Primarily used for metal etched nameplates. The “mold” itself is typically a high-resolution film (phototool) or a precision metal stencil.
2.Stamping Dies:
①Principle: Uses a punch and die set under high pressure to plastically deform or shear metal sheet, forming specific shapes, contours, or raised/recessed effects (e.g., embossing, coining, doming).
②Characteristics: High efficiency. Ideal for nameplates requiring 3D forms, precise blanking (cutting to shape), or embossed/debossed characters/patterns. Offers high strength, suitable for thicker materials.

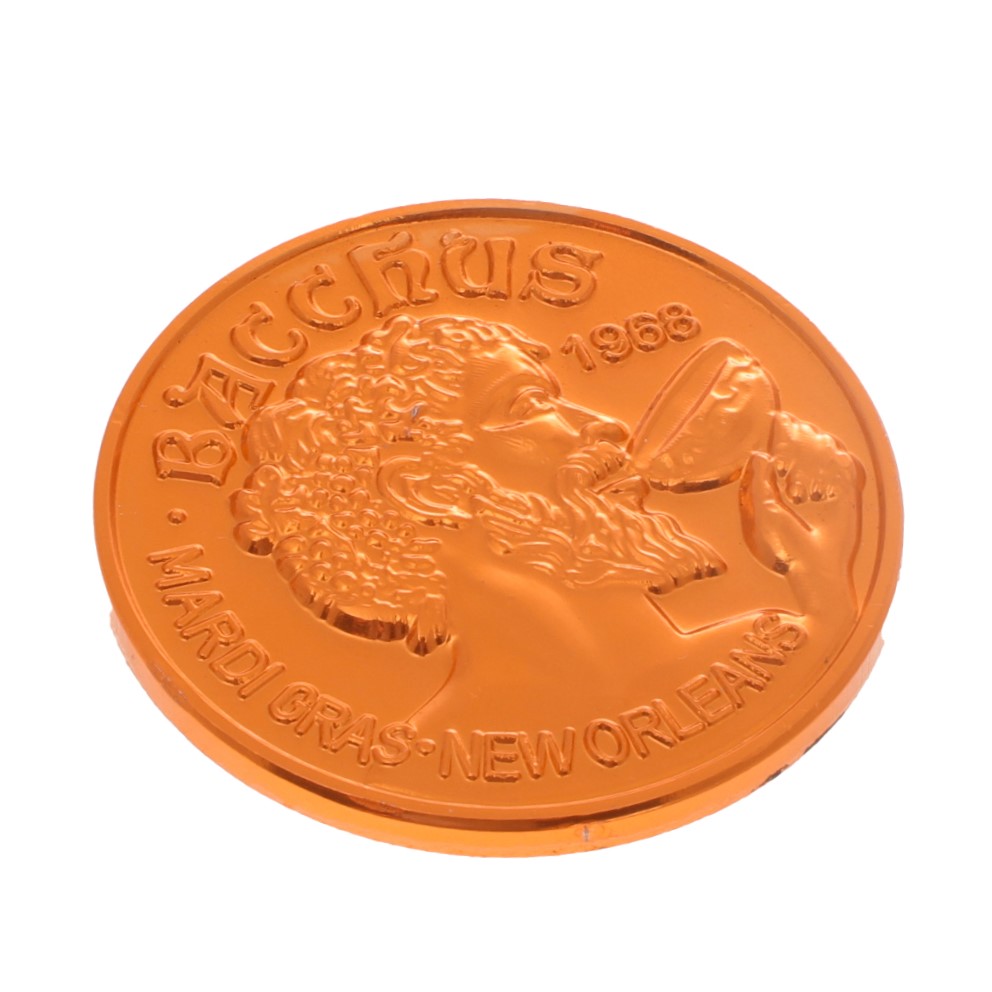

③Applied Process: Used for nameplate blanking (cutting outline), bending, embossing/debossing, coining, doming, drawing. Dies are typically made from high-strength tool steels.
三、 Crafting High-Quality Molds: A Fusion of Precision & Expertise
Creating an excellent metal nameplate mold is a blend of technology and experience:
1.Precision Design & Drafting: Based on the customer’s final approved artwork, high-precision mold design is performed using specialized CAD/CAM software, meticulously considering material properties, process feasibility, and tolerance control.
2.Material Selection:
①Etching Dies (Phototools/Stencils): High-resolution film or precision metal stencils (e.g., stainless steel).
②Stamping Dies: High-strength, high-wear-resistance, high-toughness tool steels (e.g., Cr12MoV, SKD11, DC53) ensure mold longevity and stability.
3.High-Precision Machining:
①CNC Machining: Computer Numerical Control milling, turning, etc., guarantee precise mold shape and dimensions.
②Wire EDM (Slow/Fast Wire): Used for intricate internal/external contours, offering extremely high accuracy.
③Electrical Discharge Machining (EDM/Sinker EDM): Used for complex shapes, deep cavities, or fine textures in hardened materials.
④Precision Grinding: Ensures critical surface finish and dimensional accuracy on mold components.
4.Heat Treatment: Hardening and tempering of steel stamping dies significantly increases hardness, wear resistance, and impact toughness, extending service life.
5.Rigorous Inspection: Comprehensive inspection using precision instruments (e.g., optical comparators, CMMs, height gauges, hardness testers) ensures the mold fully meets design specifications and production standards.
四、 Choosing a Supplier with Strong Mold Capabilities is Paramount
For customers seeking high-quality custom metal nameplates, selecting a supplier with in-house mold design, development, and manufacturing capabilities is crucial to success:
1.Quality Assurance: Controlling mold quality at the source equates to controlling the core quality of the final product.
2.Agile Response: Enables quick understanding of requirements and efficient mold design modifications, accelerating product iteration.
3.Cost Optimization: Internal mold capabilities effectively control mold costs and production costs, especially for larger volumes.
4.Technical Expertise: Extensive mold experience means the ability to handle more complex, challenging designs and provide professional advice.
Conclusion
Though hidden behind the finished product, the mold is the true creator of the exceptional quality and unique appeal of custom metal nameplates. From finely etched text to full-bodied embossing, from perfect edges to enduring luster – all rely on precision molds. As a professional custom metal nameplate manufacturer, we deeply understand the importance of molds and continuously invest in the research and refinement of mold technology. Our commitment is to accurately and perfectly transform your design vision into tangible, high-quality metal identifiers.
Understanding molds is understanding the core of custom metal nameplate quality! Feel free to contact our technical team anytime to discuss your custom requirements and mold solutions.
